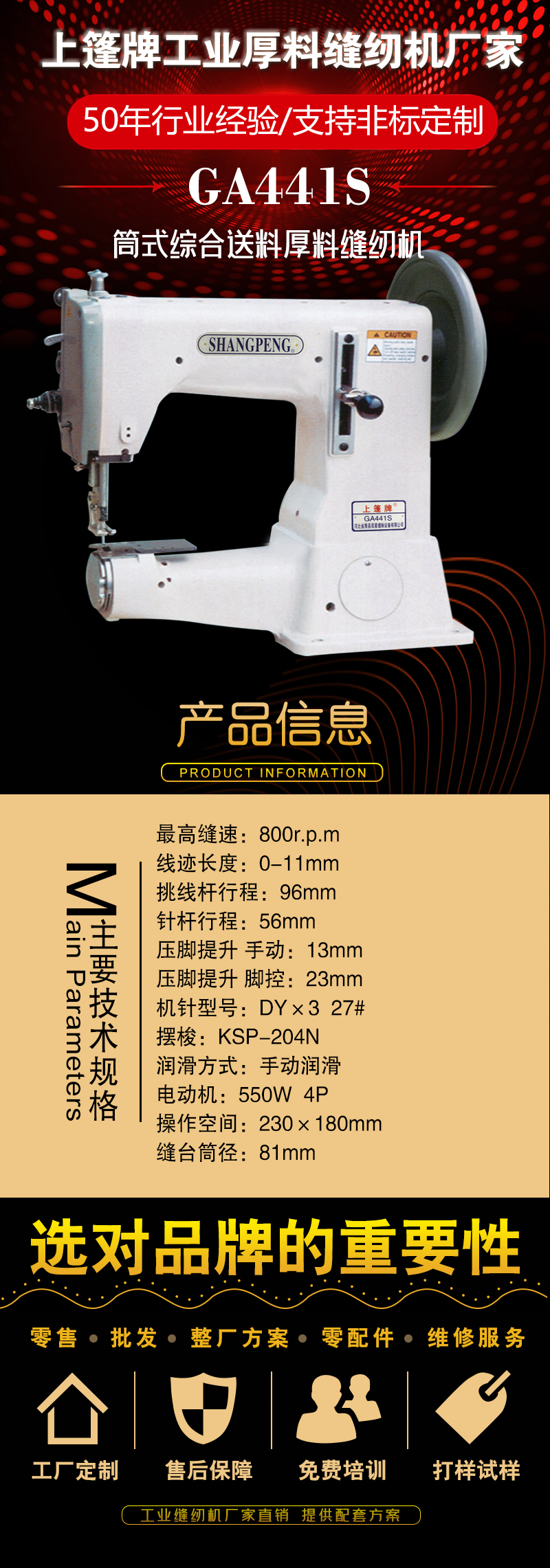

GA441S型筒式综合送料极厚料平缝机



特点:

采用综合送料方式和圆筒形缝合。送量力强劲稳定,能轻易车缝多层厚重物料,线迹精准美观。采用进口大型特种摆梭,梭芯线量大,缝制效率高。梭芯绕线装置位于机头上部,压脚提升量可达23毫米,可适用于缝制手提袋的手把、棒球手套、运动器材、安全袋、帐篷、坐垫、箱包等厚料和中厚料物品。位于机头顶部的硅油盒,用来润滑缝丝和冷却机针,使用非常方便,缝制品的线迹更美观、挺括。
Characteristics:
The feeding power is stable and strong so that it is able to sew multiplayer extra-thick material easily with nice and accurate stiches.It also adopts imported large-scale special type shuttle hook that has a large amount of bobbin thread with high sewing efficiency.Bobbin winding device is located at the top of machine head and presser's lifting capacity can be 20mm.This type of sewing machine is applicable for thick and extreme-thick material such as handlebar of handbag,baseball gloves,sports appatently,safety belt,tent,seat cushion and luggages,Silicone oil bos,located at the of machine head,is used to lubricate seams and cool needle that is very convenient and the stitch is much more beautiful,stiffer and smoother.
主要技术参数Main Parameters:

   型号 Mode
GA441S

   缝速高达 Max.Sewing speed

800 r.p.m

   线迹长度 Stitch length
0-11mm
   挑线杆行程  Thread take-up lever stroke
96mm
   针杆行程 Needie bar stroke
56mm
   压脚提升 Presser foot lift
手动By hand
13mm
膝控By knee
23mm
   摆梭 Shuttle hook
KSP-204N
   机针  Needle size
DYx3 27#
   润滑方式 Lubrication mode
手工润滑 Manual
   电动机 Motor
550w 4p

   缝台筒径  Bed Size in dia

81mm
