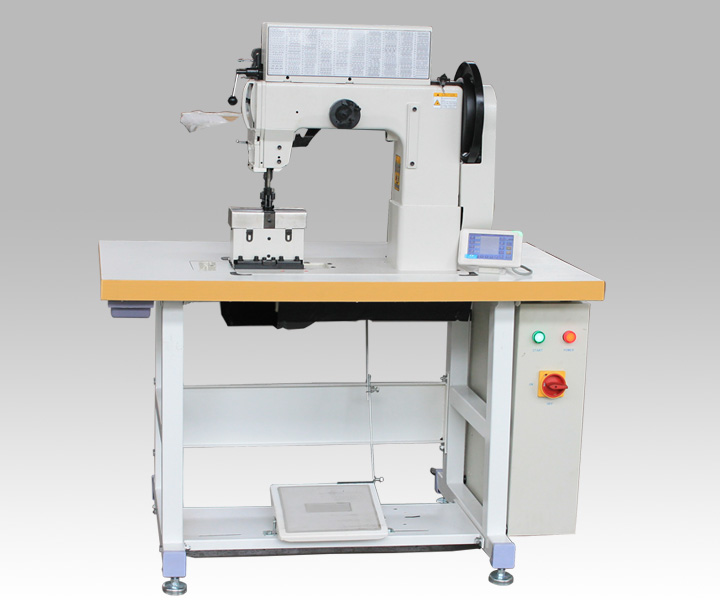

GA240-370-2A 双针立柱式电脑特厚料花样缝纫机



特点:

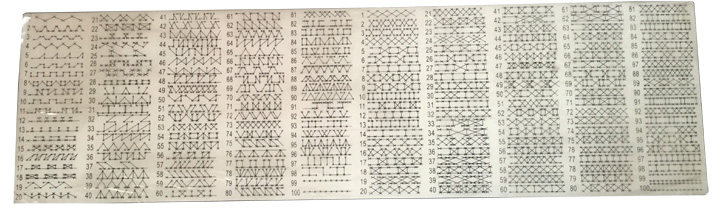

本机是双星粗线装饰缝中的新设备,此压线机采用综合送料方式,送料方式强劲稳定,采用双星公司自主研发操作软件,通过针杆旋转技术来实现不同花样变换,包括T字型,X型,口字型等装饰花样,本机经过意大利有名的家具制造商改良,在对沙发和汽车座套的转角进行压明线作业事也能保证缝纫速度和漂亮的线迹。本机采用杜克普204款超大半回款摆梭,增加容线量,减少换线次数,体高工作效率,能使用极粗线,是沙发和汽车座套生产厂家不可缺少的花样装饰缝纫设备。
Characteristics:
Capable for 200 mocca stitchings (No.80-No.O).With the control of the buttons,the buttons,the designs can be changed freely during the sewing process,and that enables the machine to be used in different purposes.By changing the size of the sewing needles,this machine is syitable for all threads from home and abroad so as to enjoy a wide applicability and meet current current trends.All transmission parts of this machine are imported from abroad,with steady qyality and durability.Unique roller pressure foot facilities the turnabout when sewing any item.This machine is controlled by servo motor,ans easy in handling,so it requires a low technique skill with with the workers,and applicable for varieties of manufactories.Applicable for mocca sewing on the high class fur garments,leather shoes,suitcases,autocushions,sofas.sportswear,down clothes,jeans and so on.
主要技术参数Main Parameters:

    型号 Mode
GA240-370-2A

    缝速高达 Max.Sewing speed

300 r.p.m

    针杆行程 Needie bar stroke
56mm
    压脚提升 Presser foot lift
气动22mm   Pneumatic22mm
    机针  Needle size
DYx3 27#
    针间距 Needle gauge

7.94-18mm

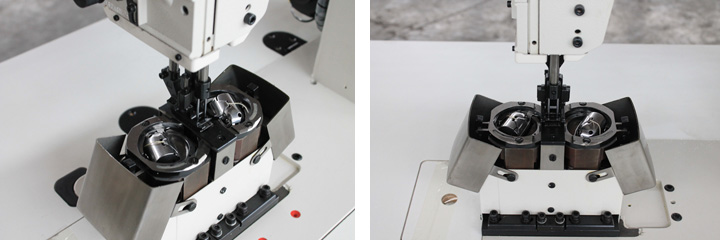

    摆梭 Shuttle hook
KSP-204N
    缝台高度  Height of sewing bed

140mm

    润滑方式 Lubrication mode
手工润滑 Manual
    操作空间  Working place

320×340mm
