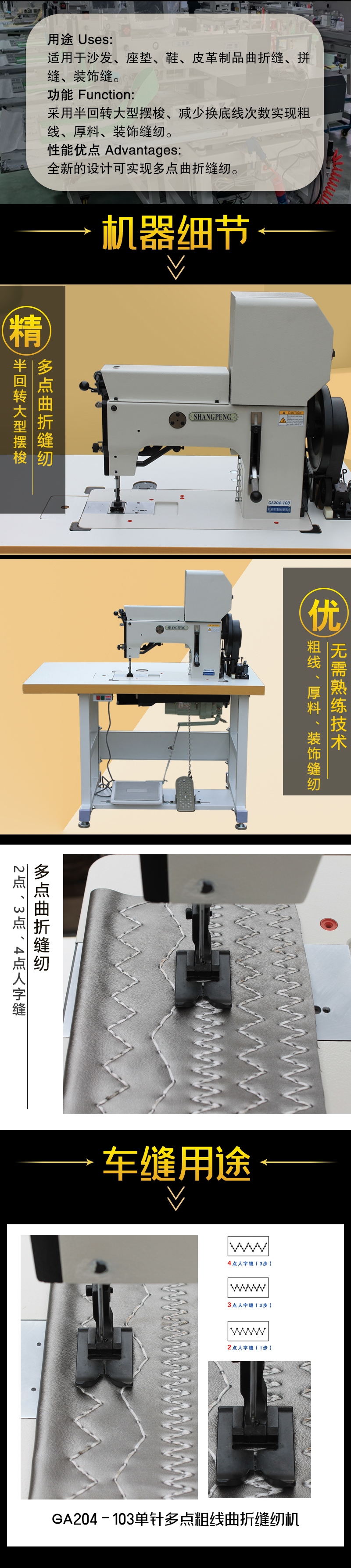

GA204-103单针多点粗线曲折缝纫机

特点：

全新的设计可实现多点曲折缝纫；采用半回转大型摆梭、减少换底线次数实现粗线、厚料、装饰缝纫；适宜于沙发、座垫、鞋、皮革制品曲折缝、拼缝、装饰缝。
Characteristics：
The new design could realize zig sewing at many points.It adopts semi-rotative large oscillating shuttle, which could reduce the times of changing bobbin and realize sewing for thick thread, thick material and decorating sewing.It is suitable for zig sewing, both cut sewing and decorating sewing of sofa, cushion and leather products.
主要技术参数Main Parameters:

缝速高达 Max.Sewing speed		800针/分 needles/min
压脚提升 Presser food lift	手提 By hand	10毫米 mm
	膝控 By knee	15毫米 mm
针距 Max stitch		10毫米 mm
针摆宽度 Width of between needle point tracers		0-16毫米 mm
机针 Needle size		DY×3
摆梭 Oscillating shuttle		KRP-204N
电动机 Motor		550W 1400转/分 r.p.m
