GA204-102双针摩卡车
特点:
垂直半回转大型摆梭,同时能进行嵌线装饰缝制,标准规格为平压脚。(也提供滚轮压脚)装饰缝时,提供针幅自由调整的新型滚轮压脚和机针夹具。适用于皮革、合成革、布料、化纤等各种中厚料及厚料,适用于缝制皮革制品、鞋、靴的装饰缝、箱包、手袋等产品。
Characteristics:

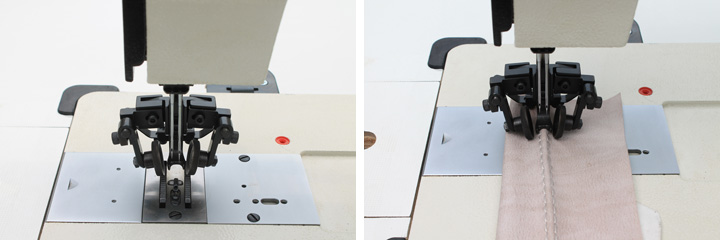

Vertical semi-rotary large shuttle,It could sewing in welt decorating stitches at the same time The standard specification is flat presser.(The roller presser also provided) New roller presser with automatic adjusting needle gauge and needle clamp are provided to decorating sewing.It is suitable for various medium and thick material and thick material, such as leather, synthetic leather, cloth and chemical fiber.It is suitable for decorating sewing of leather products,shoes and boots and suitcase and handbag etc.
主要技术参数Main Parameters:
针数 Needle |
2针 Needle |
|
缝速高达 Max.Sewing speed |
800针/分 needles/min |
|
针距 Max stitch |
8毫米 mm |
|
压脚提升 Presser food lift |
手提 By hand | 10毫米 mm |
膝控 By knee | 15毫米 mm | |
针杆行程 Needle bar stroke |
50毫米 mm |
|
润滑方式 Lubrication |
手工润滑 Manual |
|
作业空间 Operating room |
310×185毫米 mm |
|
电机 Motor |
离合器电机(500W,1400转/分)Clutch electrical engineering(550W 1400r.p.m) |
|
机头重量 machine head weight |
48KG kg |
“上篷”牌皮革特厚料缝纫机以其创新设计,深受广大用户的好评。
机型: |
应用: |
