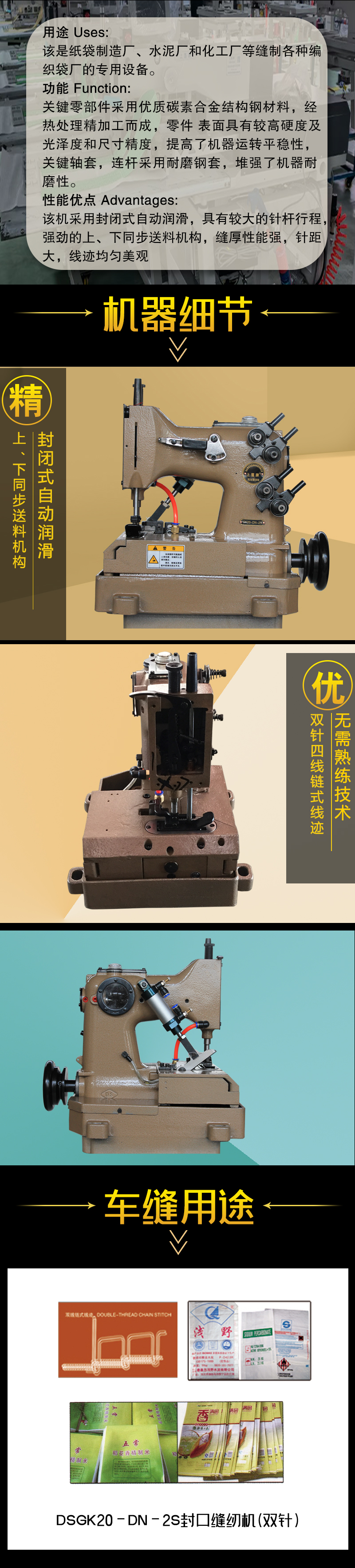

DSGK20-DN-2S封口缝纫机(双针)


特点:

GK20-DN-2S系列封口缝纫机式本公司在DN-2、DS-9、GK8等封口缝纫机基础上自行研发的一款全新封口缝纫机。该机采用封闭式自动润滑,具有较大的针杆行程,强劲的上、下同步送料机构,缝厚性能强,针距大,线迹均匀美观。
该机关键零部件采用优质碳素合金钢材料,经热处理精加工而成,零件表面具有较高硬度及光泽和尺寸精度,提高了机器运转平稳性,关键轴套,连修方便,式纸袋制造厂、水泥厂、水泥厂胡化工厂等缝制各种编织袋厂的专用设备。
Characteristics:
GK20 - DN - 2 s series sealing machine type in DN - 2, DS - 9, GK8 sealing machine is developed on the basis of a new sealing machine. The machine adopts closed automatic lubrication, has a larger needle bar stroke, strong upper and lower synchronous conveying mechanism, thick seam performance is strong, stitch, stitch uniform appearance.
he key parts adopt high quality carbon steel materials, after finish machining, heat treatment parts surface with high hardness and gloss and dimensional accuracy, improve the smoothness of the machine is running, the shaft sleeve, even convenient, type paper bag factory hu chemical plants, cement, cement and other sewing special equipment of various kinds of woven bag factory.

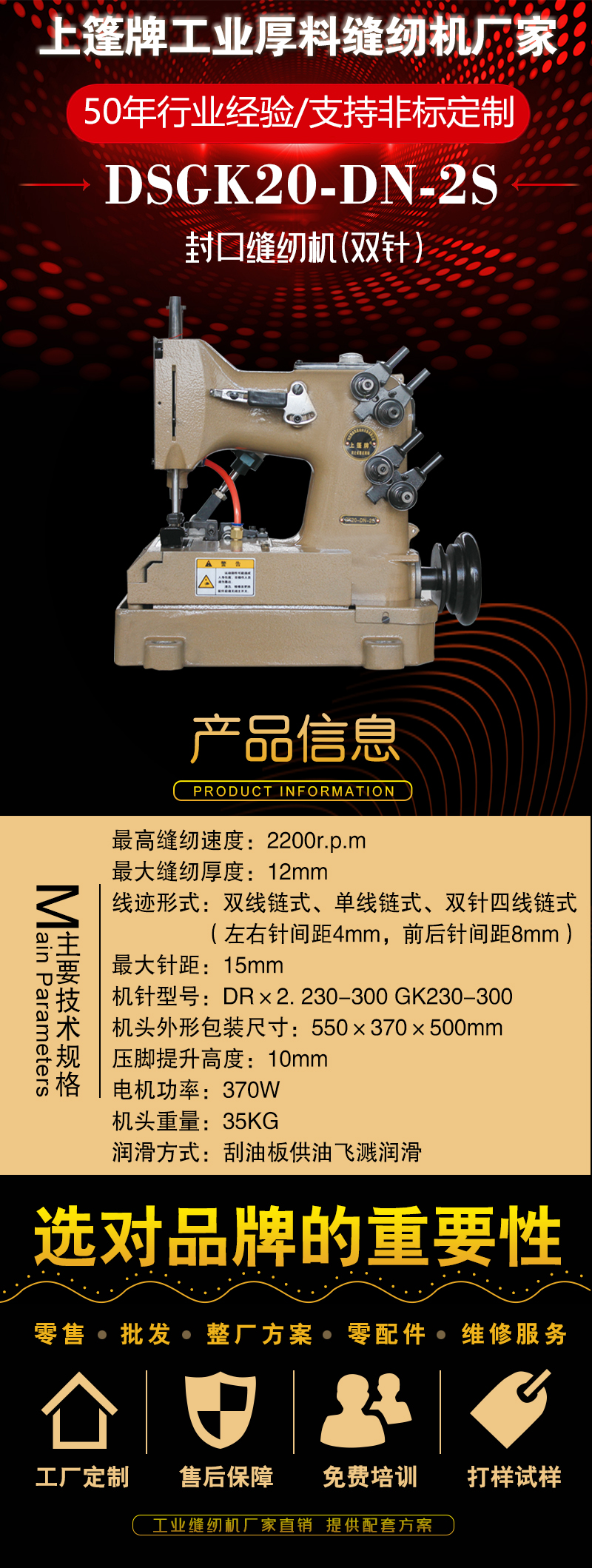

主要技术参数Main Parameters:

    缝纫速度高达 Max sewing speed
   2200/min

    缝纫厚度 Max sewing thickness

   12mm

    针距 Max stitch
   15mm
    线迹形式 Stitch type

   单线链式线迹 Single chain track
   双线链式线迹 Double chain track
    双针四线链式线迹。左右针间距4mm,前后针间距8mm
   Double four chain track.About the needle spacing 4mm Before and needle spacing 8mm

    采用机针 Needle Size
   DR×2. 230-300 GK230-300
    缝线规格 Suture stabdard
   涤纶线21支4-9股 Polyester thread 21 4-9 stocks
    电机功率 Eletric motor power
   0.37Kw
    机头外形包装尺寸 Packaging of machine
   55×37×50cm
    机头重量 Winght of machine
   35kg
    润滑方式 Lubrication way
   刮油板供油飞溅润滑 Oil scraper plate oil splash lubrication
