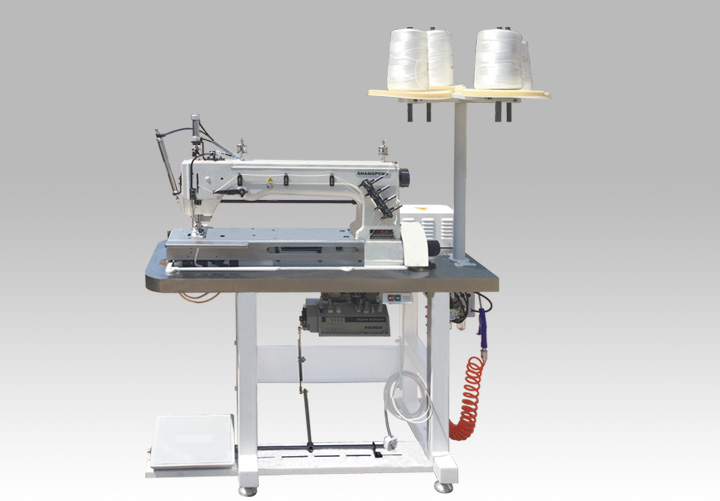

DS80800 长臂单双针链缝纫机（集装袋专用）
性能优点：
本系列产品有单、双针。采用上下送料，自动循环润滑，实现双线、四线链纫线迹，线迹美观，富有弹性，工作空间大（534x160mm）运转稳定，操作灵活，特别适用大型集装袋及其加强拉筋的缝纫。
Advantages： This series of products has single and double needles. It adopts up and down feeding and automatic circulation lubrication to realize double and four-line chain stitching. The stitching is beautiful and elastic. The working space is large (534x160mm) and the operation is stable. It is especially suitable for the sewing of large container bags and its reinforcement.
主要技术参数Main Parameters:
缝速高达Max.sewing speed |
2000针/分 r.p.m. |
工作转速Woring Speed |
1800针/分 r.p.m. |
| 针距Stitch range | (11-16针/100mm) |
| 缝度Material Thickness | 10mm以上 |
| 机针型号Needle Size | DRx2-26 |
| 缝线规格Thread | 涤纶线21支 |
| 送料方式Feed | 上下同步送料 |
| 电动机功率Power Required | 550W 2800转/分 |
| 润滑方式Lubrication | 滴注油杯润滑；自动循环润滑 |
| 工作空间Opreting Room | 534×160mm |
